线性-比较器
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Package/Case | Packaging | Series | ProductStatus | Type | NumberofElements | OutputType | Voltage-SupplySingle/Dual(±) | Voltage-InputOffset(Max) | Current-InputBias(Max) | Current-Output(Typ) | Current-Quiescent(Max) | CMRRPSRR(Typ) | PropagationDelay(Max) | Hysteresis | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM393DR2GIC COMP DUAL OFFSET LV 8SOIC onsemi |
119,517 | - |
立即询盘 |
规格书 |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 2 | CMOS, DTL, ECL, MOS, Open-Collector, TTL | 2V ~ 36V, ±1V ~ 18V | 5mV @ 30V | 0.25µA @ 5V | 16mA @ 5V | 2.5mA | - | - | - | 0°C ~ 70°C | Surface Mount |
|
LM2901DR2GIC COMP QUAD SGL SUPPLY 14SOIC onsemi |
78,741 | - |
立即询盘 |
规格书 |
14-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 4 | CMOS, Open-Collector, TTL | 3V ~ 36V, ±1.5V ~ 18V | 7mV @ 5V | 0.25µA @ 5V | 16mA @ 5V | 2.5mA | - | - | - | -40°C ~ 105°C | Surface Mount |
|
LMV331SQ3T2GIC COMPARATOR GP LV SINGLE SC-70 onsemi |
5,002 | - |
立即询盘 |
规格书 |
5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | Open Drain | 2.7V ~ 5V | 9mV @ 5V | 0.001µA @ 5V | 84mA @ 5V | 150µA | - | 1.5µs | - | - | Surface Mount |
|
|
NCV2903DR2GIC COMP DUAL OFFSET LV 8SOIC onsemi |
8,459 | - |
立即询盘 |
规格书 |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | General Purpose | 2 | CMOS, DTL, ECL, MOS, Open-Collector, TTL | 2V ~ 36V, ±1V ~ 18V | 7mV @ 30V | 0.25µA @ 5V | 16mA @ 5V | 2.5mA | - | 1.3µs | - | -40°C ~ 125°C | Surface Mount |
|
|
LM2903EDR2GIC COMP DUAL PRECISION 8SOIC onsemi |
9,177 | - |
立即询盘 |
规格书 |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 2 | - | 2V ~ 36V, ±1V ~ 18V | 7mV @ 5V | 0.25µA @ 5V | 16mA @ 5V | 1mA | - | - | - | -40°C ~ 105°C | Surface Mount |
|
LMV393DMR2GIC COMPARATOR GP LV DUAL MICRO8 onsemi |
3,000 | - |
立即询盘 |
规格书 |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 2 | Open Drain | 2.7V ~ 5V | 9mV @ 5V | 0.001µA @ 5V | 84mA @ 5V | 250µA | - | 1.5µs | - | - | Surface Mount |
|
NCV331SN3T1GIC COMPARATOR DUAL LV 5TSOP onsemi |
5,233 | - |
立即询盘 |
规格书 |
SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | General Purpose | 1 | Open Drain | 2.7V ~ 5V | 9mV @ 5V | 0.001µA @ 5V | 84mA @ 5V | 120µA | - | 800ns | - | -40°C ~ 85°C | Surface Mount |
|
|
LM239DTBR2GIC COMP QUAD SGL SUPPLY 14TSSOP onsemi |
4,853 | - |
立即询盘 |
规格书 |
14-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 4 | CMOS, Open-Collector, TTL | 3V ~ 36V, ±1.5V ~ 18V | 5mV @ 5V | 0.25µA @ 5V | 16mA @ 5V | 2.5mA | - | - | - | -25°C ~ 85°C | Surface Mount |
|
|
NCS2202SQ2T2GIC COMPARATOR LV LP OD SC70-5 onsemi |
11,940 | - |
立即询盘 |
规格书 |
5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | Open-Drain, Rail-to-Rail | 0.85V ~ 6V | 5mV @ 6V | 1pA @ 6V | - | 17µA | 70dB CMRR, 80dB PSRR | 1.1µs | 20mV | -40°C ~ 105°C | Surface Mount |
|
|
TS393DR2GIC COMPARATOR LOW PWR 8SOIC onsemi |
4,556 | - |
立即询盘 |
规格书 |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 2 | - | 2.7V ~ 16V | 1.4mV (Typ) | 1pA | 2nA | 15µA | 71dB CMRR, 80dB PSRR | 2.1µs | - | -40°C ~ 125°C | Surface Mount |
|

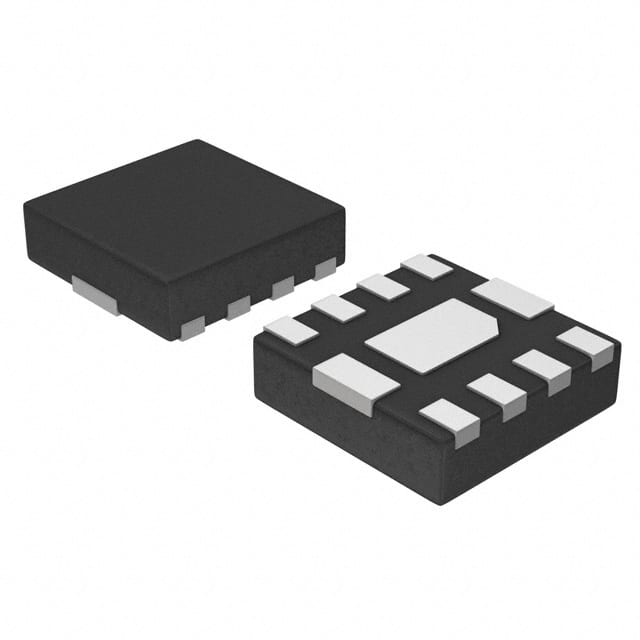

NCS2220AMUT1GIC COMPARATOR DUAL LV 8UDFN onsemi |
4,172 | - |
立即询盘 |
规格书 |
8-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 2 | Complementary, Rail-to-Rail | 0.85V ~ 6V | 5mV @ 6V | 1pA @ 6V | - | 17µA | 53dB CMRR, 45dB PSRR | 500ns | 20mV | -40°C ~ 105°C | Surface Mount |
|
LM339DCOMPARATOR onsemi |
2,211 | - |
立即询盘 |
规格书 |
14-SOIC (0.154, 3.90mm Width) | Tube | - | Obsolete | General Purpose | 4 | CMOS, DTL, ECL, MOS, Open-Collector, TTL | 2V ~ 32V, ±1V ~ 16V | 5mV @ 30V | 0.25µA @ 5V | 16mA @ 5V | 2.5mA | - | - | - | 0°C ~ 70°C | Surface Mount |
|
|
LM339ADCOMPARATOR onsemi |
19,539 | - |
立即询盘 |
规格书 |
14-SOIC (0.154, 3.90mm Width) | Tube | - | Obsolete | General Purpose | 4 | CMOS, DTL, ECL, MOS, Open-Collector, TTL | 2V ~ 32V, ±1V ~ 16V | 2mV @ 30V | 0.1µA @ 5V | 16mA @ 5V | 2.5mA | - | - | - | 0°C ~ 70°C | Surface Mount |
|
|
LMV339DTBR2GIC COMPARATOR GP LV QUAD 14TSSOP onsemi |
2,507 | - |
立即询盘 |
规格书 |
14-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 4 | Open Drain | 2.7V ~ 5V | 9mV @ 5V | 0.001µA @ 5V | 84mA @ 5V | 350µA | - | 1.5µs | - | - | Surface Mount |
|
|
TS391SN2T1GIC COMPARATOR LOW PWR 5-TSOP onsemi |
24,247 | - |
立即询盘 |
规格书 |
SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | - | 2V ~ 36V, ±1V ~ 18V | 5mV @ 5V | 0.25µA @ 5V | 20mA | 1.25mA | - | 850ns (Typ) | - | -40°C ~ 125°C | Surface Mount |
|
LA6393DLL-EHIGH-PERFORMANCE QUAD COMPARATOR onsemi |
38,749 | - |
立即询盘 |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
LA6393DL-E-ONHIGH-PERFORMANCE QUAD COMPARATOR onsemi |
31,140 | - |
立即询盘 |
- | Tube | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
LM339DR2GHANA SNGL SUP COMPT QUD onsemi |
26,486 | - |
立即询盘 |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CD8447DR2IC COMPARATOR QUAD onsemi |
35,000 | - |
立即询盘 |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
LA6339-E-ONHIGH-PERFORMANCE QUAD COMPARATOR onsemi |
22,934 | - |
立即询盘 |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
