交流-直流转换器
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

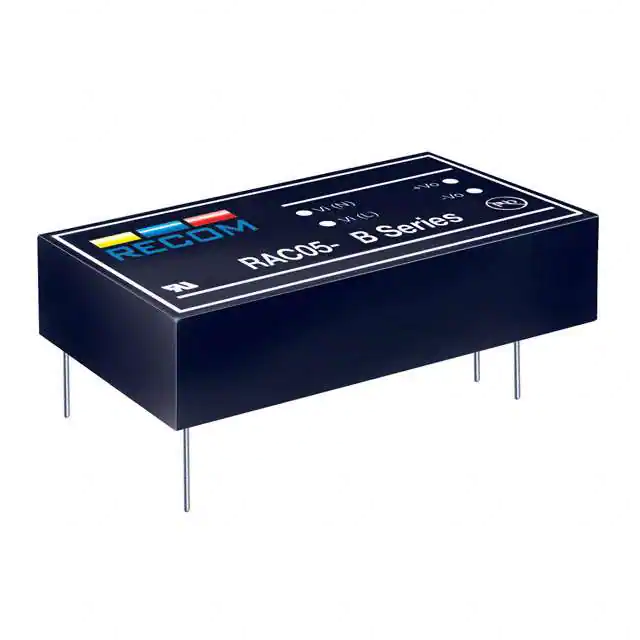

RAC05-3.3SBAC/DC CONVERTER 3.3V 5W Recom Power |
3,100 | - |
立即询盘 |
规格书 |
4-DIP Module | Tube | POWERLINE RAC05-B (5W) | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 3.3V | - | - | - | 1.25A | 5 W | ITE (Commercial) | SCP | -25°C ~ 70°C (With Derating) | 65% | Through Hole | 2.00 L x 1.00 W x 0.62 H (50.8mm x 25.4mm x 15.7mm) | CE, cULus |
|
|
RAC05-3.3SB-EAC/DC CONVERTER 3.3V 5W Recom Power |
2,533 | - |
立即询盘 |
规格书 |
4-DIP Module | Tube | POWERLINE RAC05-B (5W) | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 3.3V | - | - | - | 1.25A | 5 W | ITE (Commercial) | SCP | -40°C ~ 70°C (With Derating) | 65% | Through Hole | 2.00 L x 1.00 W x 0.62 H (50.8mm x 25.4mm x 15.7mm) | CE, cULus |
|
RAC10-05DAAC/DC CONVERTER +/-5V 10W Recom Power |
3,368 | - |
立即询盘 |
规格书 |
6-DIP Module | Box | POWERLINE RAC10-A (10W) | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 5V | -5V | - | - | 800mA, 800mA | 10 W | ITE (Commercial) | SCP | -25°C ~ 70°C (With Derating) | 71% | Through Hole | 2.52 L x 1.77 W x 0.87 H (64.0mm x 45.0mm x 22.0mm) | CE, cULus |
|
|
RAC10-05DA-EAC/DC CONVERTER +/-5V 10W Recom Power |
3,238 | - |
立即询盘 |
规格书 |
6-DIP Module | Box | POWERLINE RAC10-A (10W) | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 5V | -5V | - | - | 800mA, 800mA | 10 W | ITE (Commercial) | SCP | -40°C ~ 70°C (With Derating) | 71% | Through Hole | 2.52 L x 1.77 W x 0.87 H (64.0mm x 45.0mm x 22.0mm) | CE, cULus |
|
|
RAC10-05SAAC/DC CONVERTER 5V 10W Recom Power |
2,085 | - |
立即询盘 |
规格书 |
6-DIP Module, 5 Leads | Box | POWERLINE RAC10-A (10W) | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 5V | - | - | - | 2A | 10 W | ITE (Commercial) | SCP | -25°C ~ 70°C (With Derating) | 71% | Through Hole | 2.52 L x 1.77 W x 0.87 H (64.0mm x 45.0mm x 22.0mm) | CE, cULus |
|
|
RAC10-05SA-EAC/DC CONVERTER 5V 10W Recom Power |
2,714 | - |
立即询盘 |
规格书 |
6-DIP Module, 5 Leads | Box | POWERLINE RAC10-A (10W) | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 5V | - | - | - | 2A | 10 W | ITE (Commercial) | SCP | -40°C ~ 70°C (With Derating) | 71% | Through Hole | 2.52 L x 1.77 W x 0.87 H (64.0mm x 45.0mm x 22.0mm) | CE, cULus |
|
|
RAC10-12DAAC/DC CONVERTER +/-12V 10W Recom Power |
3,313 | - |
立即询盘 |
规格书 |
6-DIP Module | Box | POWERLINE RAC10-A (10W) | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 12V | -12V | - | - | 380mA, 380mA | 10 W | ITE (Commercial) | SCP | -25°C ~ 70°C (With Derating) | 75% | Through Hole | 2.52 L x 1.77 W x 0.87 H (64.0mm x 45.0mm x 22.0mm) | CE, cULus |
|
|
RAC10-12DA-EAC/DC CONVERTER +/-12V 10W Recom Power |
2,423 | - |
立即询盘 |
规格书 |
6-DIP Module | Box | POWERLINE RAC10-A (10W) | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 12V | -12V | - | - | 380mA, 380mA | 10 W | ITE (Commercial) | SCP | -40°C ~ 70°C (With Derating) | 75% | Through Hole | 2.52 L x 1.77 W x 0.87 H (64.0mm x 45.0mm x 22.0mm) | CE, cULus |
|
|
RAC10-12SAAC/DC CONVERTER 12V 10W Recom Power |
2,175 | - |
立即询盘 |
规格书 |
6-DIP Module, 5 Leads | Box | POWERLINE RAC10-A (10W) | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | 833mA | 10 W | ITE (Commercial) | SCP | -25°C ~ 70°C (With Derating) | 74% | Through Hole | 2.52 L x 1.77 W x 0.87 H (64.0mm x 45.0mm x 22.0mm) | CE, cULus |
|
|
RAC10-12SA-EAC/DC CONVERTER 12V 10W Recom Power |
3,608 | - |
立即询盘 |
规格书 |
6-DIP Module, 5 Leads | Box | POWERLINE RAC10-A (10W) | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | 833mA | 10 W | ITE (Commercial) | SCP | -40°C ~ 70°C (With Derating) | 74% | Through Hole | 2.52 L x 1.77 W x 0.87 H (64.0mm x 45.0mm x 22.0mm) | CE, cULus |
|
RAC10-12SB-EAC/DC CONVERTER 12V 10W Recom Power |
3,514 | - |
立即询盘 |
规格书 |
4-DIP Module | Box | POWERLINE RAC10-B (10W) | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | 833mA | 10 W | ITE (Commercial) | SCP | -40°C ~ 70°C (With Derating) | 76% | Through Hole | 2.06 L x 1.07 W x 0.94 H (52.3mm x 27.2mm x 23.8mm) | CE, cULus |
|
|
RAC10-15DAAC/DC CONVERTER +/-15V 10W Recom Power |
2,746 | - |
立即询盘 |
规格书 |
6-DIP Module | Box | POWERLINE RAC10-A (10W) | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 15V | -15V | - | - | 300mA, 300mA | 10 W | ITE (Commercial) | SCP | -25°C ~ 70°C (With Derating) | 72% | Through Hole | 2.52 L x 1.77 W x 0.87 H (64.0mm x 45.0mm x 22.0mm) | CE, cULus |
|
|
RAC10-15DA-EAC/DC CONVERTER +/-15V 10W Recom Power |
3,188 | - |
立即询盘 |
规格书 |
6-DIP Module | Box | POWERLINE RAC10-A (10W) | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 15V | -15V | - | - | 300mA, 300mA | 10 W | ITE (Commercial) | SCP | -40°C ~ 70°C (With Derating) | 72% | Through Hole | 2.52 L x 1.77 W x 0.87 H (64.0mm x 45.0mm x 22.0mm) | CE, cULus |
|
|
RAC10-15SAAC/DC CONVERTER 15V 10W Recom Power |
3,702 | - |
立即询盘 |
规格书 |
6-DIP Module, 5 Leads | Box | POWERLINE RAC10-A (10W) | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 15V | - | - | - | 666mA | 10 W | ITE (Commercial) | SCP | -25°C ~ 70°C (With Derating) | 71% | Through Hole | 2.52 L x 1.77 W x 0.87 H (64.0mm x 45.0mm x 22.0mm) | CE, cULus |
|
|
RAC10-15SA-EAC/DC CONVERTER 15V 10W Recom Power |
2,945 | - |
立即询盘 |
规格书 |
6-DIP Module, 5 Leads | Box | POWERLINE RAC10-A (10W) | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 15V | - | - | - | 666mA | 10 W | ITE (Commercial) | SCP | -40°C ~ 70°C (With Derating) | 71% | Through Hole | 2.52 L x 1.77 W x 0.87 H (64.0mm x 45.0mm x 22.0mm) | CE, cULus |
|
|
RAC10-15SB-EAC/DC CONVERTER 15V 10W Recom Power |
3,621 | - |
立即询盘 |
规格书 |
4-DIP Module | Box | POWERLINE RAC10-B (10W) | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 15V | - | - | - | 667mA | 10 W | ITE (Commercial) | SCP | -40°C ~ 70°C (With Derating) | 75% | Through Hole | 2.06 L x 1.07 W x 0.94 H (52.3mm x 27.2mm x 23.8mm) | CE, cULus |
|
|
RAC10-24SAAC/DC CONVERTER 24V 10W Recom Power |
3,268 | - |
立即询盘 |
规格书 |
6-DIP Module, 5 Leads | Box | POWERLINE RAC10-A (10W) | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | 426mA | 10 W | ITE (Commercial) | SCP | -25°C ~ 70°C (With Derating) | 74% | Through Hole | 2.52 L x 1.77 W x 0.87 H (64.0mm x 45.0mm x 22.0mm) | CE, cULus |
|
|
RAC10-24SA-EAC/DC CONVERTER 24V 10W Recom Power |
3,479 | - |
立即询盘 |
规格书 |
6-DIP Module, 5 Leads | Box | POWERLINE RAC10-A (10W) | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | 426mA | 10 W | ITE (Commercial) | SCP | -40°C ~ 70°C (With Derating) | 74% | Through Hole | 2.52 L x 1.77 W x 0.87 H (64.0mm x 45.0mm x 22.0mm) | CE, cULus |
|
|
RAC10-24SB-EAC/DC CONVERTER 24V 10W Recom Power |
3,592 | - |
立即询盘 |
规格书 |
4-DIP Module | Box | POWERLINE RAC10-B (10W) | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | 417mA | 10 W | ITE (Commercial) | SCP | -40°C ~ 70°C (With Derating) | 72% | Through Hole | 2.06 L x 1.07 W x 0.94 H (52.3mm x 27.2mm x 23.8mm) | CE, cULus |
|
|
RAC10-3.3SAAC/DC CONVERTER 3.3V 10W Recom Power |
3,522 | - |
立即询盘 |
规格书 |
6-DIP Module, 5 Leads | Box | POWERLINE RAC10-A (10W) | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 3.3V | - | - | - | 3A | 10 W | ITE (Commercial) | SCP | -25°C ~ 70°C (With Derating) | 65% | Through Hole | 2.52 L x 1.77 W x 0.87 H (64.0mm x 45.0mm x 22.0mm) | CE, cULus |
