警报器、蜂鸣器和警报器
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | DriverCircuitry | InputType | Voltage-Rated | VoltageRange | Frequency | Technology | OperatingMode | Duration | SoundPressureLevel(SPL) | Current-Supply | PortLocation | OperatingTemperature | ApprovalAgency | Ratings | IngressProtection | MountingType | Termination | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBM428BUZZER PIEZO 42.85MM TH Mallory Sonalert Products Inc. |
2,967 | - |
立即询盘 |
规格书 |
Bulk | SBM | Active | Indicator, Internally Driven | DC | - | 4 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 64dB @ 4V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Through Hole | PC Pins | 1.687 Dia (42.85mm) |
|

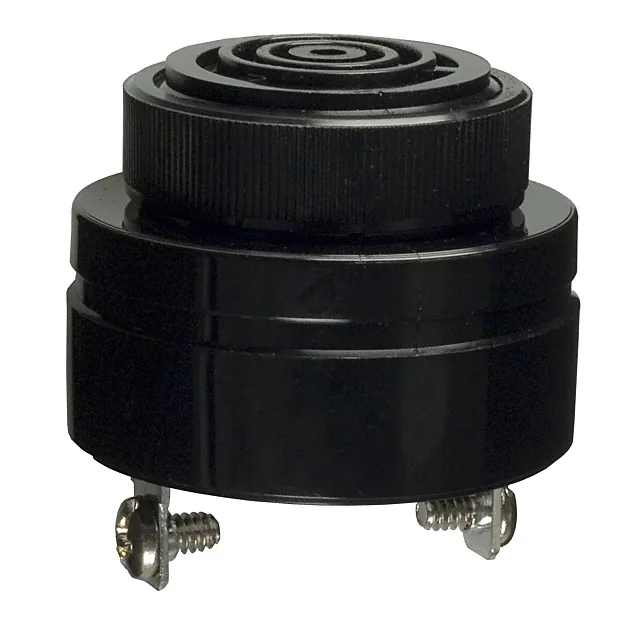

SC616NBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
2,915 | - |
立即询盘 |
规格书 |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
SC307NRBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
2,256 | - |
立即询盘 |
规格书 |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 3 ~ 7V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 3V, 61cm | 4 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
MSS5MMEBUZZER MAGNETIC 5V 23X23MM TH Mallory Sonalert Products Inc. |
2,216 | - |
立即询盘 |
规格书 |
Bulk | MSS | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 6V | 2.075kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 45 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906 L x 0.906 W (23.00mm x 23.00mm) |
|

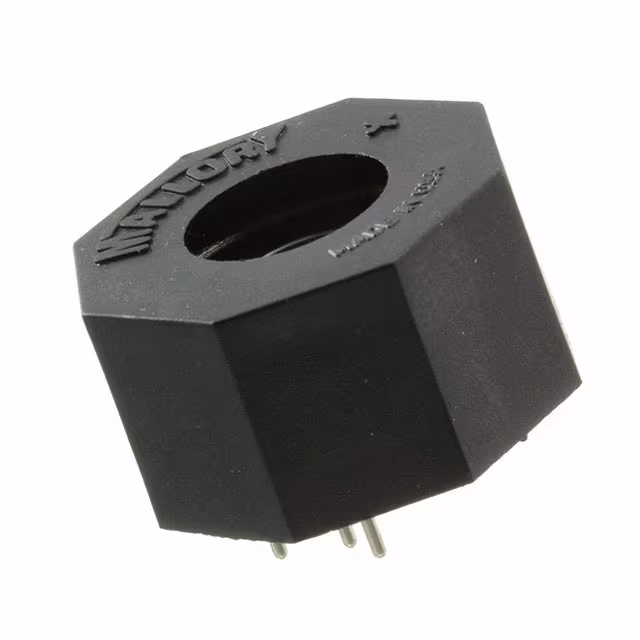

MSS5MMXBUZZER MAGNETIC 5V 23X23MM TH Mallory Sonalert Products Inc. |
3,660 | - |
立即询盘 |
规格书 |
Bulk | MSS | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 6V | 2.075kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 45 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906 L x 0.906 W (23.00mm x 23.00mm) |
|
ZA016MDCTBUZZER PIEZO 30.74MM PNL MNT Mallory Sonalert Products Inc. |
2,435 | - |
立即询盘 |
规格书 |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Single Tone | - | 75dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
SC648NDRBUZZER PIEZO 42.98MM PNL MNT Mallory Sonalert Products Inc. |
3,532 | - |
立即询盘 |
规格书 |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 12 ~ 48V | 2kHz | Piezo | Single Tone | - | 85dB @ 12V, 61cm | 7 ~ 25mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.692 Dia (42.98mm) |
|
|
ZA016LDCTBUZZER PIEZO 30.74MM PNL MNT Mallory Sonalert Products Inc. |
3,817 | - |
立即询盘 |
规格书 |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Single Tone | - | 85dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
SCE028XD3DB1SBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
3,582 | - |
立即询盘 |
规格书 |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone, Pulse, Fast | 10 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
SCE028XD3DB2SBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
2,708 | - |
立即询盘 |
规格书 |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone, Pulse, Medium | 5 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
SC628NDPBUZZER PIEZO 42.98MM PNL MNT Mallory Sonalert Products Inc. |
2,713 | - |
立即询盘 |
规格书 |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 10 ~ 28V | 2kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 85dB @ 10V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.692 Dia (42.98mm) |
|
|
SC628ARBUZZER PIEZO 42.98MM PNL MNT Mallory Sonalert Products Inc. |
3,056 | - |
立即询盘 |
规格书 |
Bulk | SC | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 7.5V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.692 Dia (42.98mm) |
|
|
SC616NPBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
2,496 | - |
立即询盘 |
规格书 |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 6V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
SCE028XD2DB2SBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
3,542 | - |
立即询盘 |
规格书 |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Single Tone, Pulse, Medium | 5 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
SCE016XD2DB2SBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
2,794 | - |
立即询盘 |
规格书 |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Single Tone, Pulse, Medium | 5 PPS | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
SCE016XD2DB3SBUZZER PIEZO 42.85MM PNL MNT Mallory Sonalert Products Inc. |
3,848 | - |
立即询盘 |
规格书 |
Bulk | SCE | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Single Tone, Pulse, Slow | 1 PPS | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.687 Dia (42.85mm) |
|
|
ZA028LDMP1BUZZER PIEZO 30.74MM PNL MNT Mallory Sonalert Products Inc. |
2,683 | - |
立即询盘 |
规格书 |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Pulse, Medium | 5 PPS | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
SC628DPRBUZZER PIEZO 42.98MM PNL MNT Mallory Sonalert Products Inc. |
3,663 | - |
立即询盘 |
规格书 |
Bulk | SC | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 1.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 60dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.692 Dia (42.98mm) |
|
SBT12GLPCBUZZER PIEZO 44.45MM TH Mallory Sonalert Products Inc. |
3,666 | - |
立即询盘 |
规格书 |
Bulk | SBT | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 150Hz ~ 4kHz | Piezo | - | Repeating every 30 Sec | 85dB @ 9V, 10cm | 25mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750 Dia (44.45mm) |
|
|
SBT12GHPCBUZZER PIEZO 44.45MM TH Mallory Sonalert Products Inc. |
2,445 | - |
立即询盘 |
规格书 |
Bulk | SBT | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 150Hz ~ 4kHz | Piezo | - | Repeating every 2.5 Sec | 85dB @ 9V, 10cm | 25mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750 Dia (44.45mm) |
