汽车继电器
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | CoilType | CoilCurrent | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | Features | MountingType | TerminationStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A61CS24VDC1.3RRELAY AUTO SPDT 30A 24VDC PCB CIT Relay and Switch |
1,866 | - |
立即询盘 |
规格书 |
Tray | A6 | Active | Non Latching | 55 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Through Hole | PC Pin |
|
PC792C-1C-C1-12C-RN-X50A SPST MINI ISO RELAY 12V RES Picker Components |
1,700 | - |
立即询盘 |
规格书 |
Box | - | Active | Non Latching | 168 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
CB1A-24VRELAY AUTOMOTIVE SPST 20A 24V Panasonic Electric Works |
974 | - |
立即询盘 |
规格书 |
Bulk | CB | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|

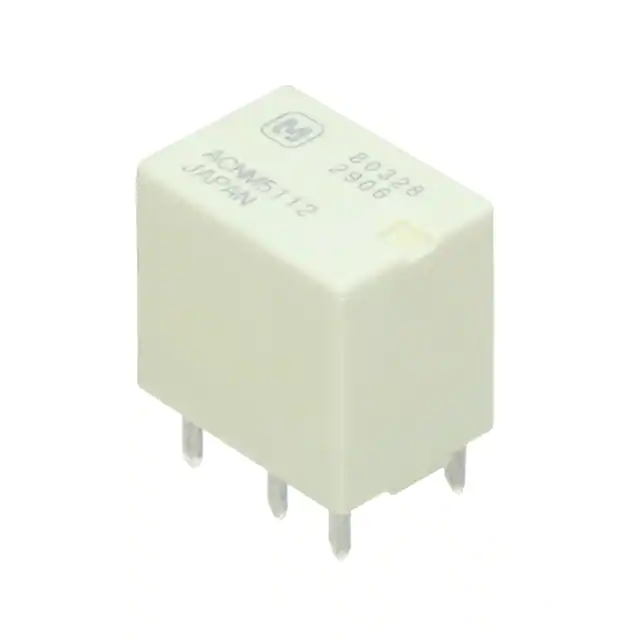

ACNM5112SAXRELAY AUTO SPDT 30A 12V Panasonic Electric Works |
2,000 | - |
立即询盘 |
规格书 |
Tape & Reel (TR) | ACNM | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Surface Mount | Gull Wing |
|
A102CS12VDCDUAL PACKAGE RELAY AUTOMOTIVE 30 CIT Relay and Switch |
240 | - |
立即询盘 |
规格书 |
Tube | A10 | Active | Non Latching | 47.2 mA | 12VDC | DPDT (2 Form C) | 30 A | 28VDC - Max | 8.4 VDC | 1.2 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin |
|
A2S1CSQ12VDC1.6RELAY AUTO QC SHROUD SPDT 12VDC CIT Relay and Switch |
561 | - |
立即询盘 |
规格书 |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
A2S1CSQ12VDC1.6RRELAY AUTO QC SHROUD SPDT 12VDC CIT Relay and Switch |
6,116 | - |
立即询盘 |
规格书 |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
A91AC12VDCRELAY AUTO 30A FUSE SPST 12VDC Q CIT Relay and Switch |
1,159 | - |
立即询盘 |
规格书 |
Tray | A9 | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
PC792A-1C-C3-12S-DN-X40A SPDT MINI ISO RELAY 12V DIO Picker Components |
2,000 | - |
立即询盘 |
规格书 |
Box | - | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
A3F1ASQ12VDC2DRELAY AUTO FLANGED HD SPST 12VDC CIT Relay and Switch |
190 | - |
立即询盘 |
规格书 |
Tray | A3F | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes |
|
A31ASP12VDC2RRELAY AUTO HD SPST 12VDC PCB RES CIT Relay and Switch |
138 | - |
立即询盘 |
规格书 |
Tray | A3 | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin |
|
A3M1ASQ12VDC2DRELAY AUTO BRACKET HD SPST 12VDC CIT Relay and Switch |
1,980 | - |
立即询盘 |
规格书 |
Tray | A3M | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes |
|

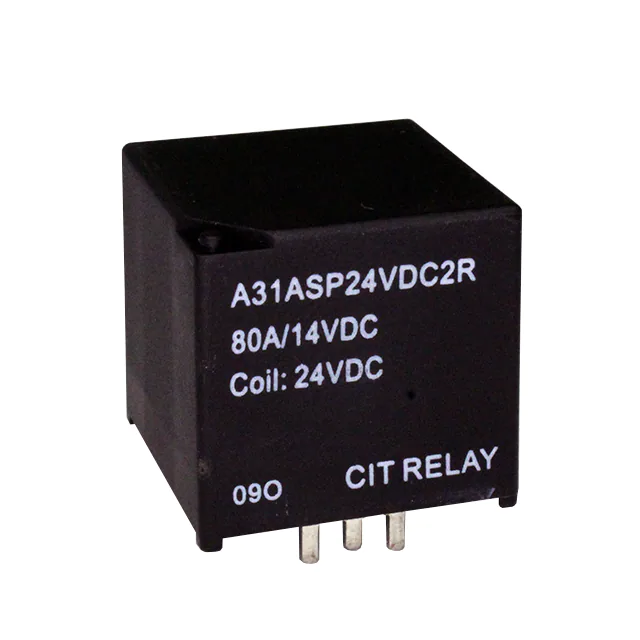

A31ASP24VDC2RRELAY AUTO HD SPST 24VDC PCB RES CIT Relay and Switch |
958 | - |
立即询盘 |
规格书 |
Tray | A3 | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin |
|

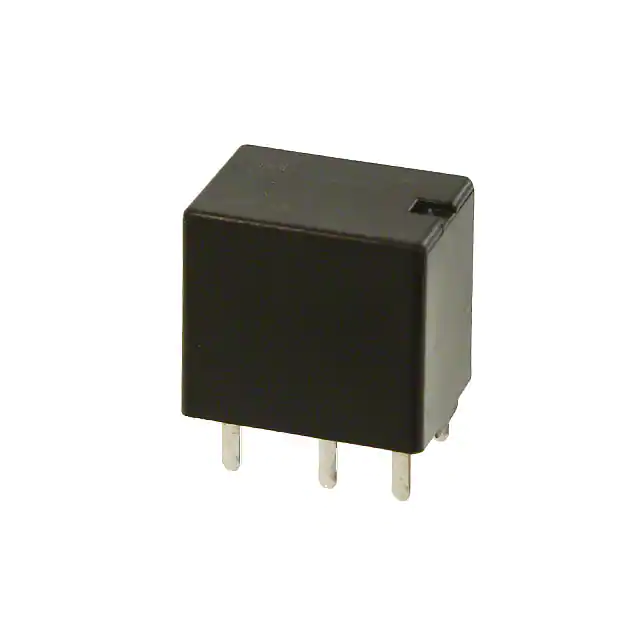

ACNM1112RELAY AUTOMOTIVE SPDT 30A 12V Panasonic Electric Works |
1,292 | - |
立即询盘 |
规格书 |
Tube | ACNM | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin |
|
CB1AH-P-24VRELAY AUTOMOTIVE SPST 70A 24V Panasonic Electric Works |
1,855 | - |
立即询盘 |
规格书 |
Tube | CB | Active | Non Latching | 58 mA | 24VDC | SPST-NO (1 Form A) | 70 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | PC Pin |
|
CB1A-R-M-24VRELAY AUTOMOTIVE SPST 20A 24V Panasonic Electric Works |
910 | - |
立即询盘 |
规格书 |
Bulk | CB | Active | Non Latching | 84 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
A2S1CSQ48VDC1.6RRELAY AUTOMOTIVE QUICK CONNECT S CIT Relay and Switch |
546 | - |
立即询盘 |
规格书 |
Tray | A2 | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
PC795-1C-P-12S-X80A SPST SEALED MAXI ISO RELAY 1 Picker Components |
884 | - |
立即询盘 |
规格书 |
Tray | - | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin |
|
ACNM5112CNM RELAY (TH,1C) Panasonic Electric Works |
9,269 | - |
立即询盘 |
规格书 |
Tube | ACNM | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin |
|
1393280-5RELAY AUTO SPST-NO 30A 12V TE Connectivity Potter & Brumfield Relays |
2,948 | - |
立即询盘 |
规格书 |
Tube | Micro Relay K | Active | Non Latching | 47.2 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 12VDC - Nom | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | - | Through Hole | PC Pin |
