PMIC-电压调节器-线性
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Package/Case | Packaging | Series | ProductStatus | OutputConfiguration | OutputType | NumberofRegulators | Voltage-Input(Max) | Voltage-Output(Min/Fixed) | Voltage-Output(Max) | VoltageDropout(Max) | Current-Output | Current-Quiescent(Iq) | Current-Supply(Max) | PSRR | ControlFeatures | ProtectionFeatures | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQ010GN01ZPHIC REG LINEAR 1V 1A SC63 Sharp Microelectronics |
3,535 | - |
立即询盘 |
规格书 |
TO-252-5, DPak (4 Leads + Tab), TO-252AD | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 5.5V | 1V | - | - | 1A | - | - | 60dB ~ 53dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
PQ012GN01ZPHIC REG LINEAR 1.2V 1A SC63 Sharp Microelectronics |
2,070 | - |
立即询盘 |
规格书 |
TO-252-5, DPak (4 Leads + Tab), TO-252AD | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 1A | - | - | 60dB ~ 53dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
PQ018EZ1HZPHIC REG LINEAR 1.8V 1.5A SC63 Sharp Microelectronics |
3,742 | - |
立即询盘 |
TO-252-6, DPak (5 Leads + Tab) | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 10V | 1.8V | - | - | 1.5A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount | |
|
PQ025Y3H3ZPHIC REG LINEAR 2.5V 3.5A TO263 Sharp Microelectronics |
2,500 | - |
立即询盘 |
规格书 |
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 0.5V @ 3.5A | 3.5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
PQ033DNA1ZPHIC REG LINEAR 3.3V 1A SC63 Sharp Microelectronics |
3,275 | - |
立即询盘 |
规格书 |
TO-252-5, DPak (4 Leads + Tab), TO-252AD | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 24V | 3.3V | - | 0.5V @ 500mA | 1A | 8 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
PQ033EZ1HZPHIC REG LINEAR 3.3V 1.5A SC63 Sharp Microelectronics |
2,876 | - |
立即询盘 |
TO-252-6, DPak (5 Leads + Tab) | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 10V | 3.3V | - | 1V @ 1.25A | 1.5A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount | |
|
PQ050DNA1ZPHIC REG LINEAR 5V 1A SC63 Sharp Microelectronics |
2,555 | - |
立即询盘 |
规格书 |
TO-252-5, DPak (4 Leads + Tab), TO-252AD | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 24V | 5V | - | 0.5V @ 500mA | 1A | 8 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|

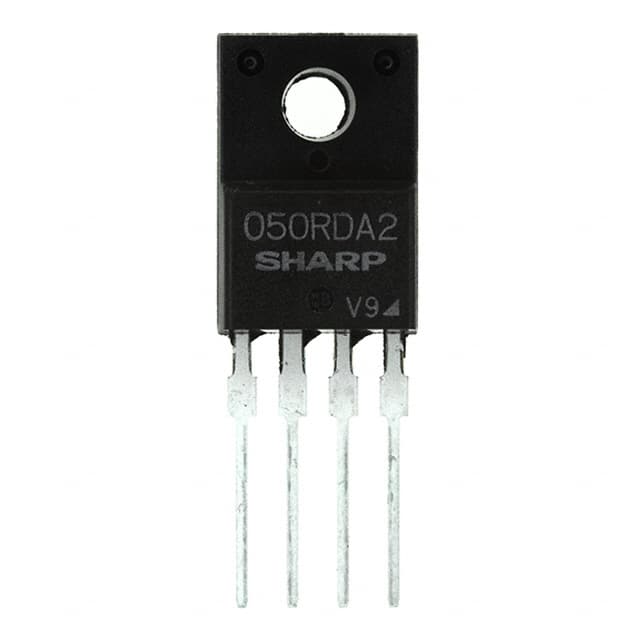

PQ050RDA2SZHIC REG LINEAR 5V 2A TO220-4 Sharp Microelectronics |
3,543 | - |
立即询盘 |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 1V @ 2A | 2A | 8 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Through Hole | |
|
PQ033ENA1ZPHIC REG LINEAR 3.3V 1A SC63 Sharp Microelectronics |
2,518 | - |
立即询盘 |
规格书 |
TO-252-5, DPak (4 Leads + Tab), TO-252AD | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 10V | 3.3V | - | 0.5V @ 500mA | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
|
PQ015EZ01ZPHIC REG LINEAR 1.5V 1A SC63 Sharp Microelectronics |
3,961 | - |
立即询盘 |
规格书 |
TO-252-6, DPak (5 Leads + Tab) | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 10V | 1.5V | - | - | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
PQ033EZ01ZPHIC REG LINEAR 3.3V 1A SC63 Sharp Microelectronics |
2,252 | - |
立即询盘 |
规格书 |
TO-252-6, DPak (5 Leads + Tab) | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 10V | 3.3V | - | 0.5V @ 500mA | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
|
PQ05DZ1UJ00HIC REG LINEAR 5V 1A SC63 Sharp Microelectronics |
3,375 | - |
立即询盘 |
规格书 |
TO-252-6, DPak (5 Leads + Tab) | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 24V | 5V | - | 0.5V @ 500mA | 1A | 10 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
PQ05VY053ZPHIC REG LINEAR POS ADJ 5A TO263 Sharp Microelectronics |
2,118 | - |
立即询盘 |
规格书 |
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Adjustable | 1 | 7V | 1.5V | 5V | 0.5V @ 5A | 5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
PQ05VY3H3ZPHIC REG LINEAR POS ADJ 3.5A TO263 Sharp Microelectronics |
2,467 | - |
立即询盘 |
规格书 |
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Adjustable | 1 | 7V | 1.5V | 5V | 0.5V @ 3.5A | 3.5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|

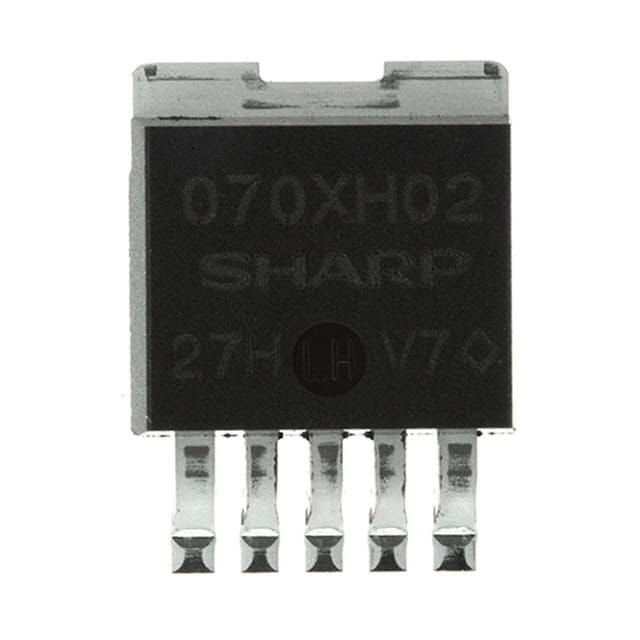

PQ070XH02ZPHIC REG LINEAR POS ADJ 2A TO263 Sharp Microelectronics |
3,982 | - |
立即询盘 |
规格书 |
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | 0.5V @ 2A | 2A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
PQ120DNA1ZPHIC REG LINEAR 12V 1A SC63 Sharp Microelectronics |
2,508 | - |
立即询盘 |
规格书 |
TO-252-5, DPak (4 Leads + Tab), TO-252AD | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 24V | 12V | - | 0.5V @ 500mA | 1A | 8 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
PQ1LAX95MSPQIC REG LIN POS ADJ 500MA SOT89 Sharp Microelectronics |
2,595 | - |
立即询盘 |
规格书 |
SOT-89-5/6 | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Adjustable | 1 | 15V | 1.24V | 9V | 0.7V @ 300mA | 500mA | 700 µA | - | 50dB (400Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
PQ1KA333MZPHIC REG LINEAR 3.3V 300MA SOT23-6 Sharp Microelectronics |
3,302 | - |
立即询盘 |
规格书 |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 15V | 3.3V | - | 0.7V @ 300mA | 300mA | 800 µA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
PQ1LA333MSPQIC REG LINEAR 3.3V 300MA SOT89 Sharp Microelectronics |
3,630 | - |
立即询盘 |
规格书 |
SOT-89-5/6 | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 15V | 3.3V | - | 0.7V @ 300mA | 300mA | 800 µA | - | 55dB (400Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
|
PQ1LA503MSPQIC REG LINEAR 5V 300MA SOT89 Sharp Microelectronics |
2,242 | - |
立即询盘 |
规格书 |
SOT-89-5/6 | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 15V | 5V | - | 0.7V @ 300mA | 300mA | 800 µA | - | 55dB (400Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
