PMIC-电压调节器-线性
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Package/Case | Packaging | Series | ProductStatus | OutputConfiguration | OutputType | NumberofRegulators | Voltage-Input(Max) | Voltage-Output(Min/Fixed) | Voltage-Output(Max) | VoltageDropout(Max) | Current-Output | Current-Quiescent(Iq) | Current-Supply(Max) | PSRR | ControlFeatures | ProtectionFeatures | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDK130M33RYIC REG LINEAR 3.3V 300MA SOT23-5 STMicroelectronics |
3,594 | - |
立即询盘 |
规格书 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.4V @ 300mA | 300mA | 60 µA | 120 µA | 55dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Surface Mount |
|
LDK320ADU30RIC REG LINEAR 3V 200MA SOT89 STMicroelectronics |
2,500 | - |
立即询盘 |
规格书 |
TO-243AA | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 18V | 3V | - | 0.35V @ 200mA | 200mA | 90 µA | 100 µA | 88dB ~ 48dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
LD39015M125RIC REG LIN 1.25V 150MA SOT23-5 STMicroelectronics |
2,048 | - |
立即询盘 |
规格书 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 5.5V | 1.25V | - | 0.1V @ 100mA | 150mA | 50 µA | 70 µA | 65dB ~ 62dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Surface Mount |
.jpg)
|
LDK220PU27RIC REG LINEAR 2.7V 200MA 6DFN STMicroelectronics |
2,494 | - |
立即询盘 |
规格书 |
6-XFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 13.2V | 2.7V | - | 0.35V @ 200mA | 200mA | 90 µA | 100 µA | 55dB ~ 50dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Surface Mount |
|
|
LD39015M15RIC REG LINEAR 1.5V 150MA SOT23-5 STMicroelectronics |
3,354 | - |
立即询盘 |
规格书 |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.1V @ 100mA | 150mA | 50 µA | 70 µA | 65dB ~ 62dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Surface Mount |
,TO-226_straightlead.jpg)
|
L78L06ACZIC REG LINEAR 6V 100MA TO92-3 STMicroelectronics |
2,709 | - |
立即询盘 |
规格书 |
TO-226-3, TO-92-3 (TO-226AA) | Tube | - | Obsolete | Positive | Fixed | 1 | 30V | 6V | - | - | 100mA | 5.5 mA | 6 mA | 46dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | Through Hole |
__2.jpg)
|
L78M05CDTIC REG LINEAR 5V 500MA DPAK STMicroelectronics |
3,206 | - |
立即询盘 |
规格书 |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | - | 500mA | 6 mA | - | 62dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 150°C | Surface Mount |
|
L7905CD2TIC REG LINEAR -5V 1.5A D2PAK STMicroelectronics |
3,902 | - |
立即询盘 |
规格书 |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tube | - | Obsolete | Negative | Fixed | 1 | -35V | -5V | - | 1.4V @ 1A (Typ) | 1.5A | 3 mA | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | Surface Mount |
|
|
LD1117DT33IC REG LINEAR 3.3V 800MA DPAK STMicroelectronics |
3,895 | - |
立即询盘 |
规格书 |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | - | Obsolete | Positive | Fixed | 1 | 15V | 3.3V | - | 1.2V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | Surface Mount |
|
|
LF33CDTIC REG LINEAR 3.3V 500MA DPAK STMicroelectronics |
3,766 | - |
立即询盘 |
规格书 |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | - | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 0.7V @ 500mA | 500mA | 1 mA | 12 mA | 80dB ~ 65dB (120Hz ~ 65dB) | - | Over Current, Over Temperature | -40°C ~ 125°C | Surface Mount |
|
L387AIC REG LIN 5V 500MA 5PENTAWATT STMicroelectronics |
3,146 | - |
立即询盘 |
规格书 |
Pentawatt-5 (Vertical, Bent and Staggered Leads) | Tube | - | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.8V @ 500mA | 500mA | 15 mA | 180 mA | - | Reset | Over Current, Over Temperature | -40°C ~ 125°C | Through Hole |
|
|
L7805CD2TIC REG LINEAR 5V 1.5A D2PAK STMicroelectronics |
2,432 | - |
立即询盘 |
规格书 |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A (Typ) | 1.5A | 8 mA | - | 62dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | Surface Mount |
|
|
L7812CD2TIC REG LINEAR 12V 1.5A D2PAK STMicroelectronics |
2,722 | - |
立即询盘 |
规格书 |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | 2V @ 1A (Typ) | 1.5A | 8 mA | - | 55dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | Surface Mount |
|
L78L05ACDIC REG LINEAR 5V 100MA 8SO STMicroelectronics |
2,313 | - |
立即询盘 |
规格书 |
8-SOIC (0.154, 3.90mm Width) | Tube | - | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | - | 100mA | 5.5 mA | 6 mA | 49dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | Surface Mount |
|
|
LM317D2TIC REG LINEAR POS ADJ 1.5A D2PAK STMicroelectronics |
3,400 | - |
立即询盘 |
规格书 |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tube | - | Obsolete | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 1.5A | - | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | Surface Mount |
|

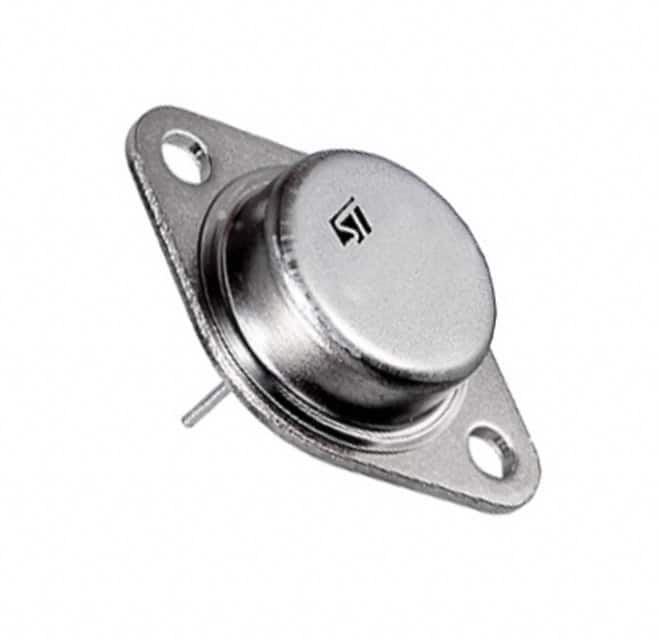

LM323KIC REG LINEAR 5V 3A TO3 STMicroelectronics |
2,062 | - |
立即询盘 |
规格书 |
TO-204AA, TO-3 | Tube | - | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | - | 3A | - | - | - | - | Over Current, Over Temperature | 0°C ~ 125°C | Through Hole |
|
|
LM338KIC REG LINEAR POS ADJ 5A TO3 STMicroelectronics |
2,108 | - |
立即询盘 |
规格书 |
TO-204AA, TO-3 | Tube | - | Obsolete | Positive | Adjustable | 1 | 35V | 1.2V | 32V | - | 5A | - | - | 75dB ~ 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | Through Hole |
|
|
LM350KIC REG LINEAR POS ADJ 3A TO3 STMicroelectronics |
2,356 | - |
立即询盘 |
规格书 |
TO-204AA, TO-3 | Tube | - | Obsolete | Positive | Adjustable | 1 | 35V | 1.2V | 25V | - | 3A | - | - | 86dB ~ 65dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | Through Hole |
|
LM723CDIC REG LINEAR POS ADJ 150MA 14SO STMicroelectronics |
3,456 | - |
立即询盘 |
规格书 |
14-SOIC (0.154, 3.90mm Width) | Tube | - | Obsolete | Positive | Adjustable | 1 | 40V | 2V | 37V | - | 150mA | 4 mA | - | 86db ~ 74dB (100Hz ~ 10kHz) | - | Over Current | 0°C ~ 70°C | Surface Mount |
|
LF18ABPT-TRIC REG LINEAR 1.8V 500MA PPAK STMicroelectronics |
5,000 | - |
立即询盘 |
规格书 |
TO-252-5, DPak (4 Leads + Tab), TO-252AD | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 16V | 1.8V | - | 0.7V @ 200mA (Typ) | 500mA | 1 mA | 12 mA | 82dB ~ 60dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Surface Mount |
