电源继电器，超过2安培
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J115F31A120VACSRELAY GEN PURPOSE SPST 40A 120V CIT Relay and Switch |
3,669 | - |
立即询盘 |
规格书 |
Tray | - | Active | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 39.5 mA | Non Latching | - | Quick Connect - 0.187/0.250 | Sealed - Fully | Class F | 90 VAC | 36 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J115F31AL110VACSRELAY GEN PURPOSE SPST 40A 110V CIT Relay and Switch |
126 | - |
立即询盘 |
规格书 |
Tray | J115F3 | Active | Chassis Mount | 110VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 46.6 mA | Non Latching | - | Quick Connect - 0.187/0.250 | Sealed - Fully | Class F | 82.5 VAC | 33 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J115F21A120VACSRELAY GEN PURPOSE SPST 40A 120V CIT Relay and Switch |
598 | - |
立即询盘 |
规格书 |
Tube | J115F2 | Active | Through Hole | 120VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 39.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 90 VAC | 36 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J115F11AH24VDCS61.5URELAY GEN PURPOSE SPST 50A 24V CIT Relay and Switch |
2,598 | - |
立即询盘 |
规格书 |
Tube | J115F | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 62.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
J115F21AH24VDCS61.5URELAY GEN PURPOSE SPST 50A 24V CIT Relay and Switch |
245 | - |
立即询盘 |
规格书 |
Tube | J115F | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 62.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
J115F31AH12VDCS61.5URELAY GEN PURPOSE SPST 50A 12V CIT Relay and Switch |
116 | - |
立即询盘 |
规格书 |
Tray | J115F | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 125 mA | Non Latching | - | Quick Connect - 0.187/0.250 | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
J115F11AH12VDCSH1.5URELAY GEN PURPOSE SPST 50A 12V CIT Relay and Switch |
3,478 | - |
立即询盘 |
规格书 |
Tube | J115F | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 125 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
J115F11CH12VDCS61.5URELAY GEN PURPOSE SPDT 50A 12V CIT Relay and Switch |
3,031 | - |
立即询盘 |
规格书 |
Tube | J115F | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 125 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
J115F11CH5VDCS61.5URELAY GEN PURPOSE SPDT 50A 5V CIT Relay and Switch |
354 | - |
立即询盘 |
规格书 |
Tube | J115F | Active | Through Hole | 5VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 299.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
J115F31AH24VDCS61.5URELAY GEN PURPOSE SPST 50A 24V CIT Relay and Switch |
2,526 | - |
立即询盘 |
规格书 |
Tray | J115F | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 62.5 mA | Non Latching | - | Quick Connect - 0.187/0.250 | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
J115F11CH24VDCS61.5URELAY GEN PURPOSE SPDT 50A 24V CIT Relay and Switch |
2,456 | - |
立即询盘 |
规格书 |
Tube | J115F | Active | Through Hole | 24VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 62.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
J115F11CH24VDCSH1.5URELAY GEN PURPOSE SPDT 50A 24V CIT Relay and Switch |
2,704 | - |
立即询盘 |
规格书 |
Tube | J115F | Active | Through Hole | 24VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 62.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|

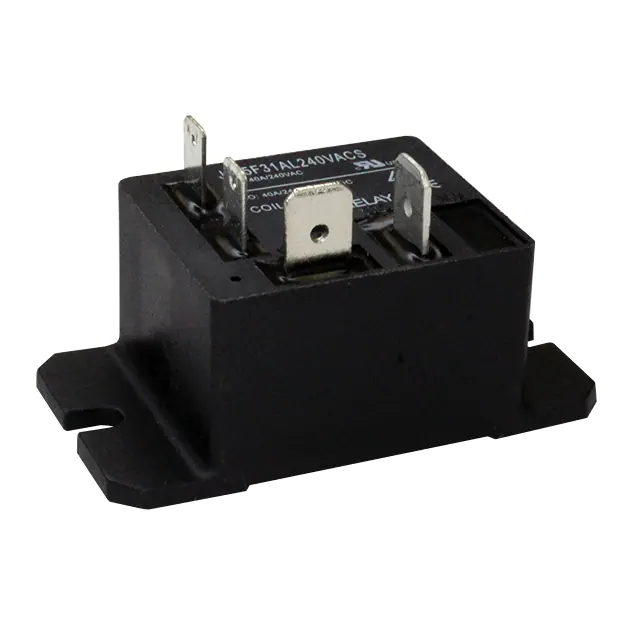

J115F31AL240VACSRELAY GEN PURPOSE SPST 40A 240V CIT Relay and Switch |
2,652 | - |
立即询盘 |
规格书 |
Tray | J115F3 | Active | Chassis Mount | 240VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 15.7 mA | Non Latching | - | Quick Connect - 0.187/0.250 | Sealed - Fully | Class F | 180 VAC | 72 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J115F31A240VACSRELAY GEN PURPOSE SPST 40A 240V CIT Relay and Switch |
595 | - |
立即询盘 |
规格书 |
Tray | J115F3 | Active | Chassis Mount | 240VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 15.7 mA | Non Latching | - | Quick Connect - 0.187/0.250 | Sealed - Fully | Class F | 180 VAC | 72 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J115F31CH24VDCS61.5URELAY GEN PURPOSE SPDT 50A 24V CIT Relay and Switch |
2,057 | - |
立即询盘 |
规格书 |
Tray | J115F | Active | Chassis Mount | 24VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 62.5 mA | Non Latching | - | Quick Connect - 0.187/0.250 | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
J115F21C120VACSRELAY GEN PURPOSE SPDT 40A 120V CIT Relay and Switch |
225 | - |
立即询盘 |
规格书 |
Tube | J115F2 | Active | Through Hole | 120VAC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 39.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 90 VAC | 36 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J115F21CH12VDCS61.5URELAY GEN PURPOSE SPDT 50A 12V CIT Relay and Switch |
3,219 | - |
立即询盘 |
规格书 |
Tube | J115F | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 125 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
L115F11AH5VDCS1.5URELAY GEN PURPOSE SPST 50A 5V CIT Relay and Switch |
3,426 | - |
立即询盘 |
规格书 |
Tube | L115F1 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 299.4 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 4 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|

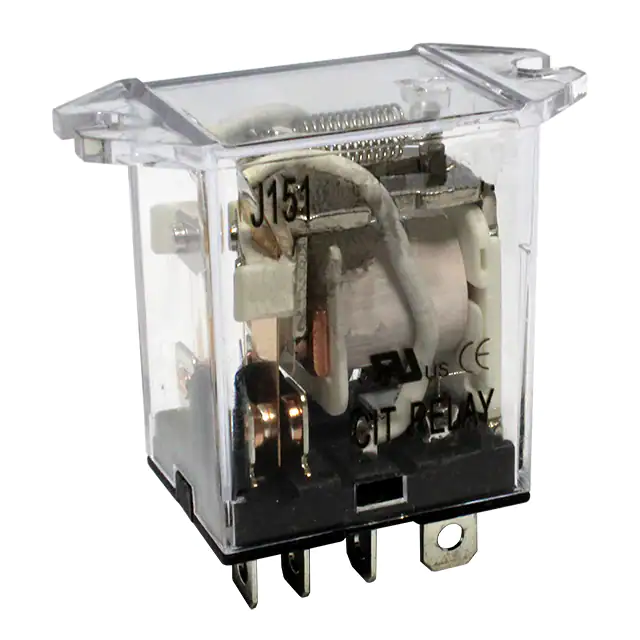

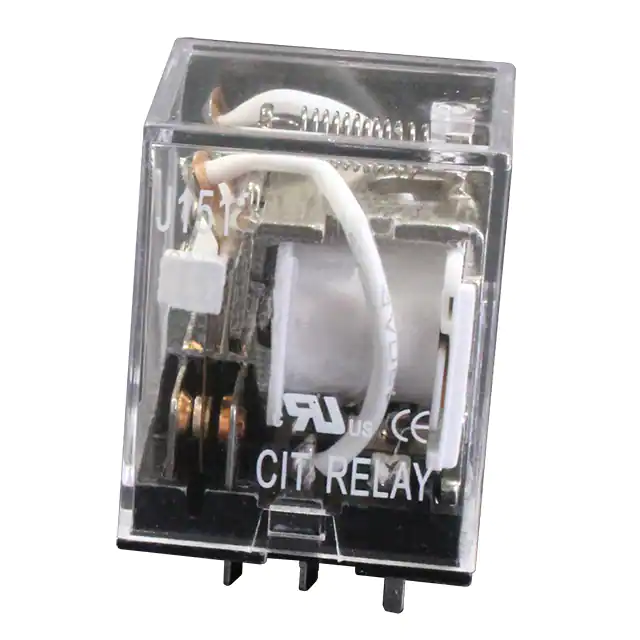

J1512CF12VDC.9RELAY GEN PURPOSE DPDT 20A 12V CIT Relay and Switch |
306 | - |
立即询盘 |
规格书 |
Tray | J151 | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 20 A | 300VAC - Max | 75 mA | Non Latching | - | Plug In | - | - | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
J1512CT24VDC.9RELAY GEN PURPOSE DPDT 20A 24V CIT Relay and Switch |
395 | - |
立即询盘 |
规格书 |
Tray | J151 | Active | Socketable | 24VDC | DPDT (2 Form C) | 20 A | 300VAC - Max | 36.9 mA | Non Latching | - | Plug In | - | - | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
