电力变压器

型号	库存	价格	数量	规格书	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

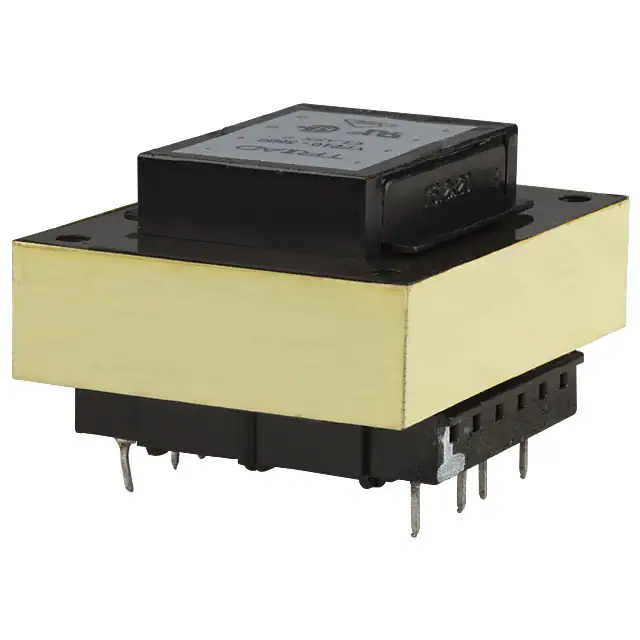

VPP36-1560 PWR XFMR LAMINATED 56VA TH Triad Magnetics	295	-	立即询盘	规格书	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 3.12A, Series 1.56A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.02mm	4000Vrms
F8-24 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	161	-	立即询盘	规格书	Box	Quick Pack	Active	Laminated Core	115V	24V	4A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC
FD8-24 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	1,120	-	立即询盘	规格书	Box	Quick Pack	Active	Laminated Core	115V, 230V	24V	4A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC

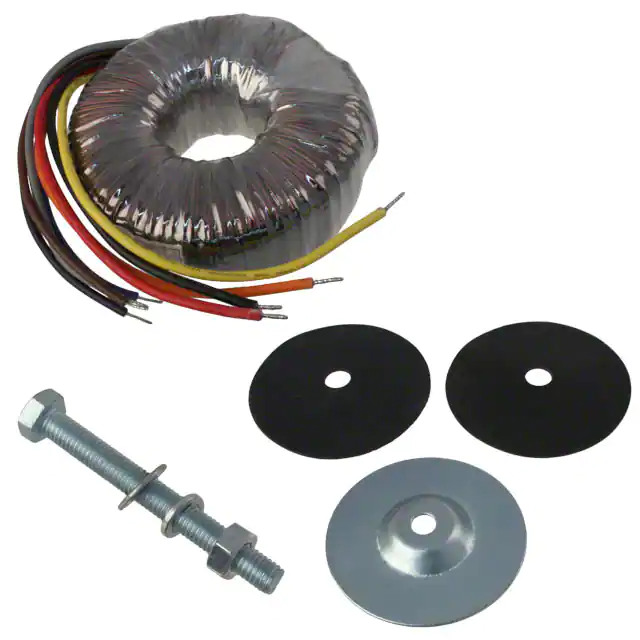

VPT24-2080 PWR XFMR TORO 50VA CHAS MT Triad Magnetics	295	-	立即询盘	规格书	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 4.16A, Series 2.08A	Dual	Dual	No	50VA	Chassis Mount	Wire Leads	80.00mm Dia x 33.00mm W	36.0mm	4000Vrms
VPS24-5400 PWR XFMR LAMINATED 130VA CHAS MT Triad Magnetics	132	-	立即询盘	规格书	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 10.8A, Series 5.4A	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	60.45mm L x 68.33mm W	85.85mm	4000Vrms
VPS36-4800 PWR XFMR LAMINATED 175VA CHAS MT Triad Magnetics	105	-	立即询盘	规格书	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 9.6A, Series 4.8A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.50mm L x 71.37mm W	95.25mm	4000Vrms
VPT30-5330 PWR XFMR TORO 160VA CHAS MT Triad Magnetics	3,108	-	立即询盘	规格书	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 10.66A, Series 5.33A	Dual	Dual	No	160VA	Chassis Mount	Wire Leads	103.00mm Dia x 48.00mm W	52.0mm	4000Vrms
TCT40-03E07AB PWR XFMR LAMINATED 40VA CHAS MT Triad Magnetics	206	-	立即询盘	规格书	Box	Class 2, TCT	Active	Laminated Core	120V	12V	3.34A	Single	Single	No	40VA	Chassis Mount	Solder, Quick Connect	92.46mm L x 59.44mm W	56.39mm	1500VAC

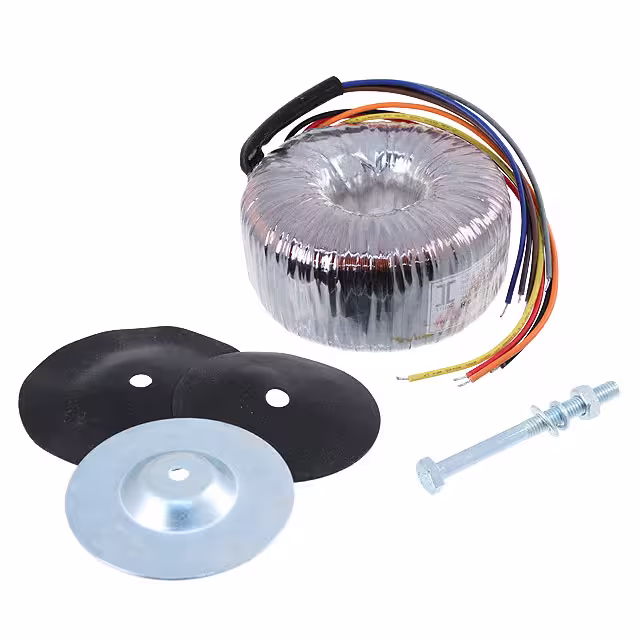

VPT230-1090 PWR XFMR TORO 250VA CHAS MT Triad Magnetics	491	-	立即询盘	规格书	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 2.18A, Series 1.09A	Dual	Dual	No	250VA	Chassis Mount	Wire Leads	112.00mm Dia x 54.00mm W	58.0mm	4000Vrms

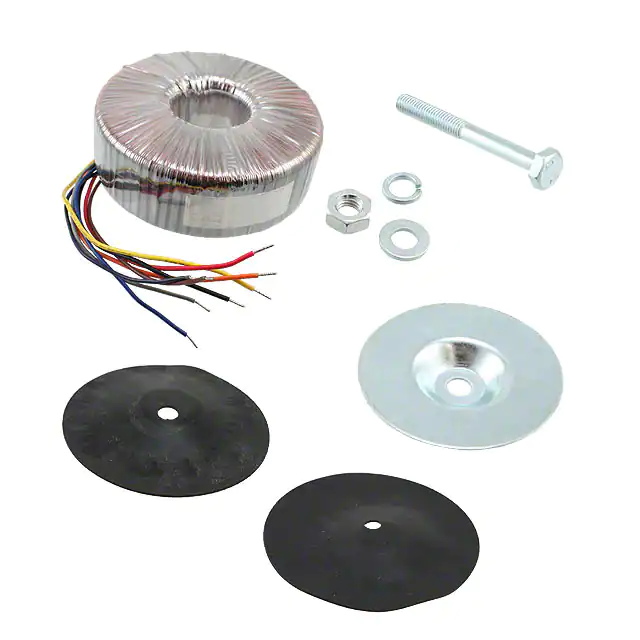

VPT230-4350 PWR XFMR TORO 1000VA CHAS MT Triad Magnetics	180	-	立即询盘	规格书	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 8.7A, Series 4.35A	Dual	Dual	No	1000VA	Chassis Mount	Wire Leads	175.00mm Dia x 68.00mm W	76.0mm	4000Vrms
FS16-070-C2 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	279	-	立即询盘	规格书	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 140mA, Series 70mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	4200Vrms
F12-090-C2 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	1,547	-	立即询盘	规格书	Tube	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 6.3V, Series 12.6V	Parallel 180mA, Series 90mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	4200Vrms
F10-250 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	188	-	立即询盘	规格书	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 500mA, Series 250mA	Single	Dual	No	2.5VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	2500Vrms
F36-65 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,171	-	立即询盘	规格书	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 130mA, Series 65mA	Single	Dual	No	2.5VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	2500Vrms
VPP20-120 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	813	-	立即询盘	规格书	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 240mA, Series 120mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	28.58mm	4000Vrms
VPP28-180 PWR XFMR LAMINATED 5VA TH Triad Magnetics	3,224	-	立即询盘	规格书	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 360mA, Series 180mA	Dual	Dual	No	5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	34.93mm	4000Vrms
FS28-200-C2 PWR XFMR LAMINATED 6VA TH Triad Magnetics	363	-	立即询盘	规格书	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 400mA, Series 200mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	4200Vrms
FS12-500-C2 PWR XFMR LAMINATED 6VA TH Triad Magnetics	132	-	立即询盘	规格书	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 1A, Series 500mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	4200Vrms
F20-600-C2 PWR XFMR LAMINATED 12VA TH Triad Magnetics	124	-	立即询盘	规格书	Tube	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 10V, Series 20V	Parallel 1.2A, Series 600mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	2500Vrms
FS16-400 PWR XFMR LAMINATED 6VA TH Triad Magnetics	250	-	立即询盘	规格书	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 800mA, Series 400mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
