压力传感器、传感器
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASP1400SENSOR PRESSURE DIFF MODULE Sensirion AG |
2,547 | - |
立即询盘 |
规格书 |
Module | Tray | - | Active | Board Mount | Differential | ±0.02PSI (±0.1kPa) | RS-232 | 15.2b | ±1.5% | 7V ~ 18V | Male - 0.24 (6mm) Tube, Dual | Barbed | Temperature Compensated | - | ±21.76PSI (±150kPa) | 0°C ~ 70°C |
|

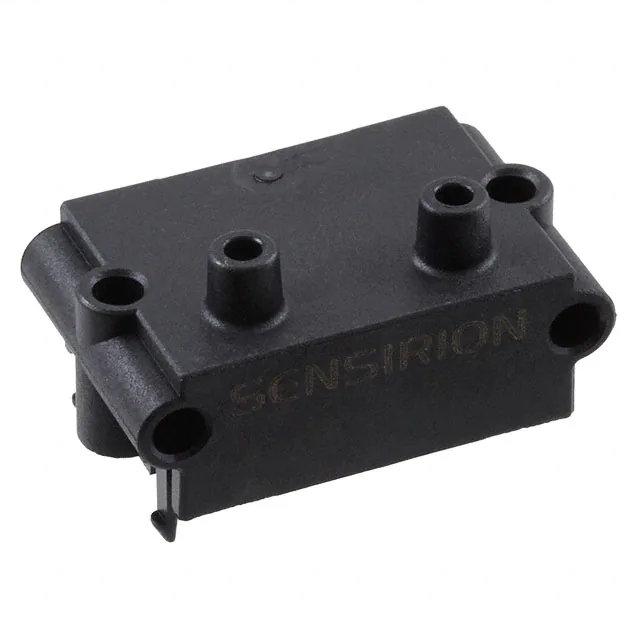

SDP806-125PASENSOR PRESSURE DIFF Sensirion AG |
3,124 | - |
立即询盘 |
规格书 |
Module | Tray | SDP800 | Active | Board Mount | Differential | ±0.018PSI (± 0.125kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±3% | 3V ~ 5.5V | Male - 0.2 (5.2mm) Tube, Dual | Barbless | Temperature Compensated | - | 14.5PSI (100kPa) | -20°C ~ 85°C |
|

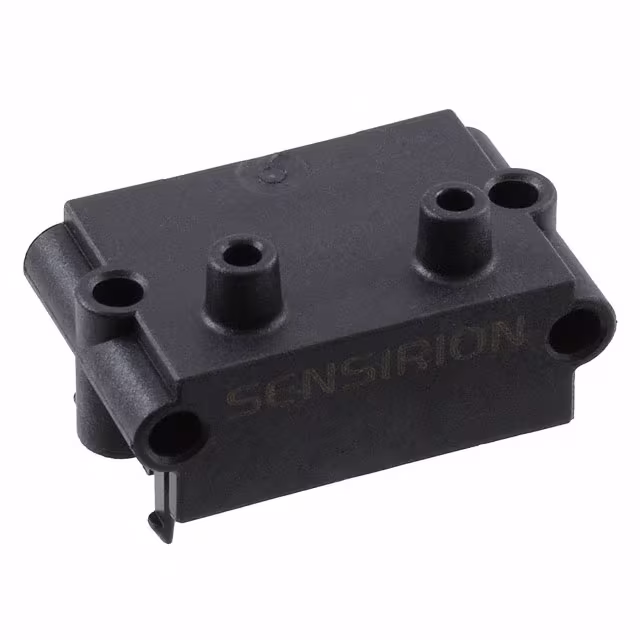

SDP800-125PASENSOR PRESSURE DIFF Sensirion AG |
3,042 | - |
立即询盘 |
规格书 |
Module | Tray | SDP800 | Active | Board Mount | Differential | ±0.018PSI (± 0.125kPa) | I²C | 16 b | ±3% | 3V ~ 5.5V | Male - 0.2 (5.2mm) Tube, Dual | Barbless | Temperature Compensated | - | 14.5PSI (100kPa) | -20°C ~ 85°C |
|
SDP600-025PASENSOR PRESSURE DIFF MODULE Sensirion AG |
2,977 | - |
立即询盘 |
规格书 |
3-SIP Module | Tray | SDP600 | Not For New Designs | Board Mount | Differential | ±0.004PSI (±0.025kPa) | I²C | 16 b | ±3% | 3V ~ 3.6V | - | No Port | Temperature Compensated | PC Pin | ±14.5PSI (±100kPa) | -20°C ~ 80°C |
|
SDP36-500PA-TR-250PCSSENSOR PRESSURE DIFF MODULE Sensirion AG |
2,409 | - |
立即询盘 |
规格书 |
16-SMD Module | Tape & Reel (TR),Cut Tape (CT) | SDP3x | Active | Board Mount | Differential | -0.07PSI ~ 0.07PSI (-0.5kPa ~ 0.5kPa) | Analog Voltage | 100 mV ~ 900 mV (3.3V) | ±3% | 3V ~ 3.6V | Male - 0.08 (2.00mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 14.5PSI (100kPa) | -20°C ~ 85°C |
|

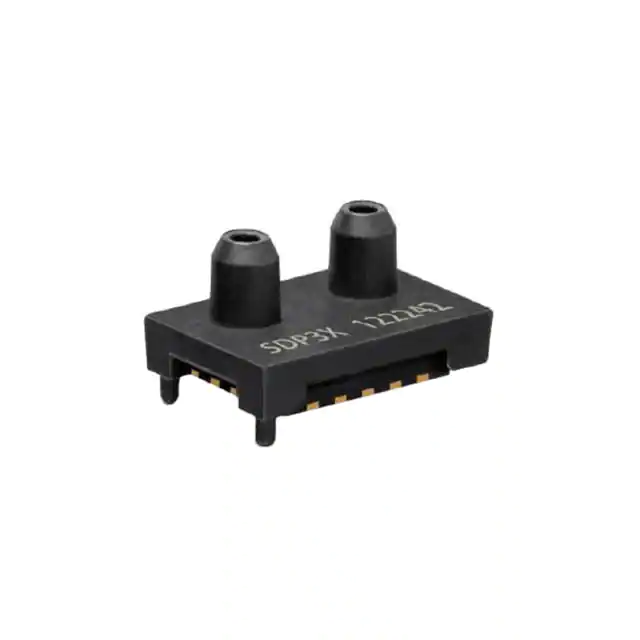

8.000.998SDP31 NASA Sensirion AG |
2,041 | - |
立即询盘 |
规格书 |
16-SMD Module | Tape & Reel (TR) | SDP3x | Active | Board Mount | Differential | -0.07PSI ~ 0.07PSI (-0.5kPa ~ 0.5kPa) | I²C | 16 b | ±3% | 3.3V | Male - 0.08 (2.00mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 14.5PSI (100kPa) | -40°C ~ 85°C |
|
|
SDP600-125PASENSOR PRESSURE DIFF MODULE Sensirion AG |
2,379 | - |
立即询盘 |
规格书 |
3-SIP Module | Tray | SDP600 | Not For New Designs | Board Mount | Differential | ±0.018PSI (± 0.125kPa) | I²C | 16 b | ±3% | 3V ~ 3.6V | - | No Port | Temperature Compensated | PC Pin | ±14.5PSI (±100kPa) | -20°C ~ 80°C |
|

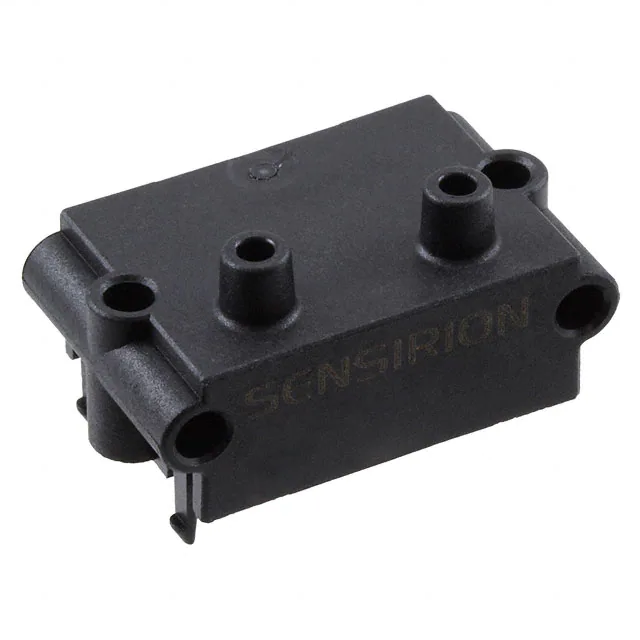

SDP806-500PASENSOR PRESSURE DIFF Sensirion AG |
2,874 | - |
立即询盘 |
规格书 |
Module | Tray | SDP800 | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±3% | 3V ~ 5.5V | Male - 0.2 (5.2mm) Tube, Dual | Barbless | Temperature Compensated | - | 14.5PSI (100kPa) | -20°C ~ 85°C |
|
|
SDP601SENSOR PRESSURE DIFF 3SIP Sensirion AG |
3,883 | - |
立即询盘 |
规格书 |
3-SIP Module | Tray | SDP600 | Not For New Designs | Board Mount | Differential | ± 0.072PSI (±0.5kPa) | I²C | 16 b | ±3% | 3V ~ 3.6V | - | No Port | Temperature Compensated | PC Pin | ±14.5PSI (±100kPa) | -20°C ~ 80°C |
|
SDP1000-RSENSOR PRESSURE DIFF MODULE Sensirion AG |
2,259 | - |
立即询盘 |
规格书 |
Module | Tray | SDP1000 | Obsolete | Board Mount | Differential | -0.003PSI ~ 0.072PSI (-0.02kPa ~ 0.5kPa) | Analog Voltage | 0.25 V ~ 4 V | ±0.3% | 4.75V ~ 5.25V | Male - 0.2 (5.2mm) Tube, Dual | Barbed | Temperature Compensated | - | 14.5PSI (100kPa) | -10°C ~ 60°C |
|
|
SDP2108-RSENSOR PRESSURE DIFF MODULE Sensirion AG |
2,036 | - |
立即询盘 |
规格书 |
Module | Tray | SDPx108 | Obsolete | Board Mount | Differential | 0.51PSI (3.49kPa) | Analog Voltage | 0.25 V ~ 4 V | ±0.4% | 5V | Male - 0.2 (5.2mm) Tube, Dual | Barbed | Temperature Compensated | - | 14.5PSI (100kPa) | -40°C ~ 80°C |
|
SDP606SENSOR PRESSURE DIFF 4SIP Sensirion AG |
3,402 | - |
立即询盘 |
规格书 |
4-SIP Module | Tray | SDP600 | Obsolete | Board Mount | Differential | ±0.07PSI (±0.5kPa) | I²C | 16b | ±3% | 2.7V ~ 3.3V | - | No Port | Temperature Compensated | PC Pin | ±72.52PSI (±500kPa) | -20°C ~ 80°C |
|
SDP616SENSOR PRESSURE DIFF 4SIP Sensirion AG |
2,903 | - |
立即询盘 |
规格书 |
4-SIP Module | Tray | SDP600 | Obsolete | Board Mount | Differential | ±0.07PSI (±0.5kPa) | I²C | 16b | ±3% | 2.7V ~ 3.3V | Male - 0.2 (5.2mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±72.52PSI (±500kPa) | -20°C ~ 80°C |
|
|
SDP31-500PASENSOR PRESSURE DIFF MODULE Sensirion AG |
2,310 | - |
立即询盘 |
规格书 |
16-SMD Module | Strip | SDP3x | Discontinued at Mosen | Board Mount | Differential | -0.07PSI ~ 0.07PSI (-0.5kPa ~ 0.5kPa) | I²C | 16b | ±3% | 3.3V | Male - 0.08 (2.00mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 14.5PSI (100kPa) | -40°C ~ 85°C |
|
|
SDP36-500PASENSOR PRESSURE DIFF MODULE Sensirion AG |
2,840 | - |
立即询盘 |
规格书 |
16-SMD Module | Strip | SDP3x | Discontinued at Mosen | Board Mount | Differential | -0.07PSI ~ 0.07PSI (-0.5kPa ~ 0.5kPa) | Analog Voltage | 100 mV ~ 900 mV (3.3V) | ±3% | 3V ~ 3.6V | Male - 0.08 (2.00mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 14.5PSI (100kPa) | -20°C ~ 85°C |
