干簧继电器
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DIP05-1A72-12DRELAY REED SPST 1A 5V Standex-Meder Electronics |
3,371 | - |
立即询盘 |
规格书 |
Tube | DIP | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
DIP24-1A72-12DRELAY REED SPST 1A 24V Standex-Meder Electronics |
2,028 | - |
立即询盘 |
规格书 |
Tube | DIP | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
MS12-1A87-75LRELAY REED SPST 500MA 12V Standex-Meder Electronics |
3,799 | - |
立即询盘 |
规格书 |
Tube | MS | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 17.1 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
|
MS05-1A87-75LRELAY REED SPST 500MA 5V Standex-Meder Electronics |
2,601 | - |
立即询盘 |
规格书 |
Tube | MS | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 18 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
NP05-1A66-500-210RELAY REED SPST 500MA 5V Standex-Meder Electronics |
2,230 | - |
立即询盘 |
规格书 |
Tube | NP | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
DIP12-2A72-21LRELAY REED DPST 1A 12V Standex-Meder Electronics |
2,965 | - |
立即询盘 |
规格书 |
Tube | DIP | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
|
MS12-1A87-75DRELAY REED SPST 500MA 12V Standex-Meder Electronics |
3,769 | - |
立即询盘 |
规格书 |
Tube | MS | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 17.1 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
|
DIP24-2A72-21LRELAY REED DPST 1A 24V Standex-Meder Electronics |
3,645 | - |
立即询盘 |
规格书 |
Tube | DIP | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
|
DIP24-1C90-51DRELAY REED SPDT 500MA 24V Standex-Meder Electronics |
2,858 | - |
立即询盘 |
规格书 |
Tube | DIP | Active | Through Hole | 24VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C |
|
|
NP05-2A66-500-220RELAY REED DPST 500MA 5V Standex-Meder Electronics |
3,095 | - |
立即询盘 |
规格书 |
Tube | NP | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
SIL05-1A72-74LRELAY REED SPST 0.5A 5V Standex-Meder Electronics |
2,865 | - |
立即询盘 |
规格书 |
Tube | SIL | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C |
|
BE12-1A85-PRELAY REED SPST 1A 12V Standex-Meder Electronics |
2,791 | - |
立即询盘 |
规格书 |
Tube | BE | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 19.3 mA | Non Latching | - | PC Pin | Sealed - Fully | 8.4 VDC | 1.8 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C |
|
|
BE24-1A85-PRELAY REED SPST 1A 24V Standex-Meder Electronics |
3,751 | - |
立即询盘 |
规格书 |
Tube | BE | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 17.1 mA | Non Latching | - | PC Pin | Sealed - Fully | 16.8 VDC | 3.6 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C |
|
|
MS05-2A87-78DRELAY REED DPST 500MA 5V Standex-Meder Electronics |
2,941 | - |
立即询盘 |
规格书 |
Tube | MS | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 13.4 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.5 ms | 0.35 ms | -20°C ~ 70°C |
|
MS05-2A87-78LRELAY REED DPST 500MA 5V Standex-Meder Electronics |
2,118 | - |
立即询盘 |
规格书 |
Tube | MS | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 13.4 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
|
BE05-1A85-PRELAY REED SPST 1A 5V Standex-Meder Electronics |
3,764 | - |
立即询盘 |
规格书 |
Tube | BE | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 47.6 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C |
|
HE12-1A83-02RELAY REED SPST 3A 12V Standex-Meder Electronics |
3,652 | - |
立即询盘 |
规格书 |
Bulk | HE | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 46.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 2 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C |
|
HE12-1A83-03RELAY REED SPST 3A 12V Standex-Meder Electronics |
3,140 | - |
立即询盘 |
规格书 |
Tube | HE | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 46.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C |
|
|
HE12-1B83RELAY REED SPST 3A 12V Standex-Meder Electronics |
2,820 | - |
立即询盘 |
规格书 |
Bulk | HE | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 7500VAC, 7500VDC - Max | 30 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C |
|

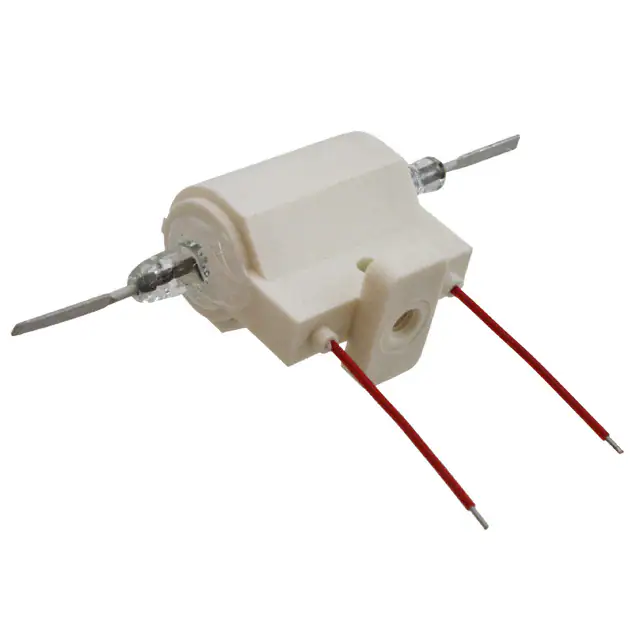

H24-1A83RELAY REED SPST 3A 24V Standex-Meder Electronics |
2,872 | - |
立即询盘 |
规格书 |
Bulk | H | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 34.3 mA | Non Latching | - | Wire Leads | - | 18 VDC | 2 VDC | 3.2 ms | 1.5 ms | -20°C ~ 70°C |
