音频变压器

型号	库存	价格	数量	规格书	Packaging	Series	ProductStatus	TurnsRatio-Primary:Secondary	Impedance-Primary(Ohms)	Impedance-Secondary(Ohms)	DCResistance(DCR)-Primary	DCResistance(DCR)-Secondary	TransformerType	FrequencyRange	FrequencyResponse	Voltage-Isolation	InsertionLoss	ReturnLoss	PowerLevel	OperatingTemperature	ApprovalAgency	MountingType	Size/Dimension	Height-Seated(Max)

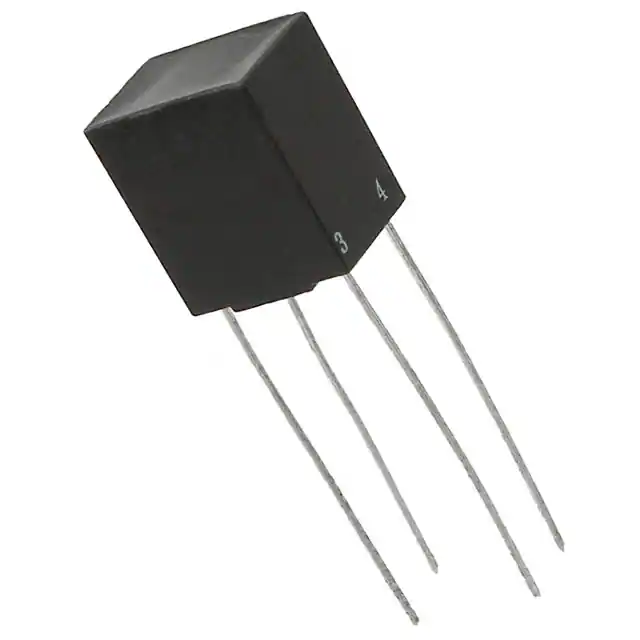

MET-39-T TRANSFORMER 500:50 3.0MADC Triad Magnetics	3,021	-	立即询盘	规格书	Bulk	MET	Active	3.16:1	500	50	55Ohm	8Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)
MET-32-T TRANSFORMER 600:150/150 3.0MADC Triad Magnetics	711	-	立即询盘	规格书	Bulk	MET	Active	2:1:1	600	150/150	70Ohm	95Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 30 Seconds	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)
SP-13 TRANSF 25K CT 20K CT/1K 800CT AU Triad Magnetics	125	-	立即询盘	规格书	Bulk	Red-Spec	Active	5:1	25kCT, 20kCT	1kCT, 800CT	1.7kOhm	115Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	40mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)
TY-311P TRANSF 600 OHM 0MA DC TEL Triad Magnetics	3,107	-	立即询盘	规格书	Bulk	TY	Active	1:1.05	600	600	38Ohm	53Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1dB Typ	26dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.812 L x 0.715 W (20.62mm x 18.16mm)	0.740 (18.80mm)

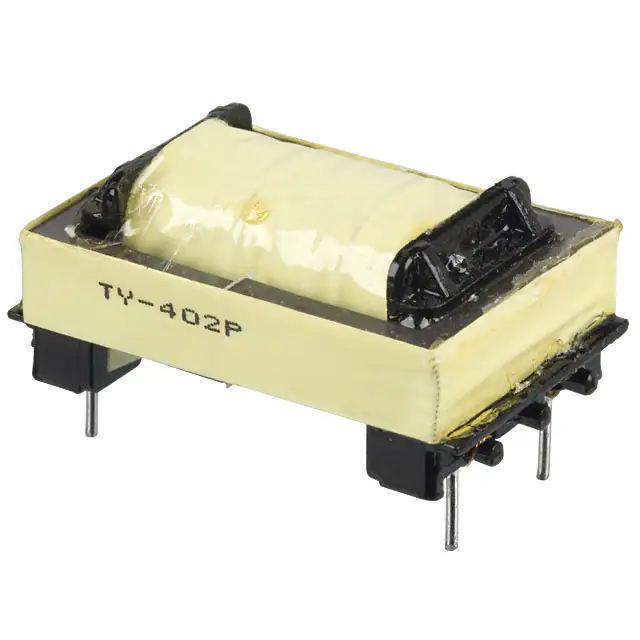

TY-402P TRANSF 600 OHM 90MA DC TEL Triad Magnetics	299	-	立即询盘	规格书	Bulk	TY	Active	1:1.1	600	600	80Ohm	112Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1.75dB Typ	13dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.815 L x 1.250 W (20.70mm x 31.75mm)	0.530 (13.46mm)

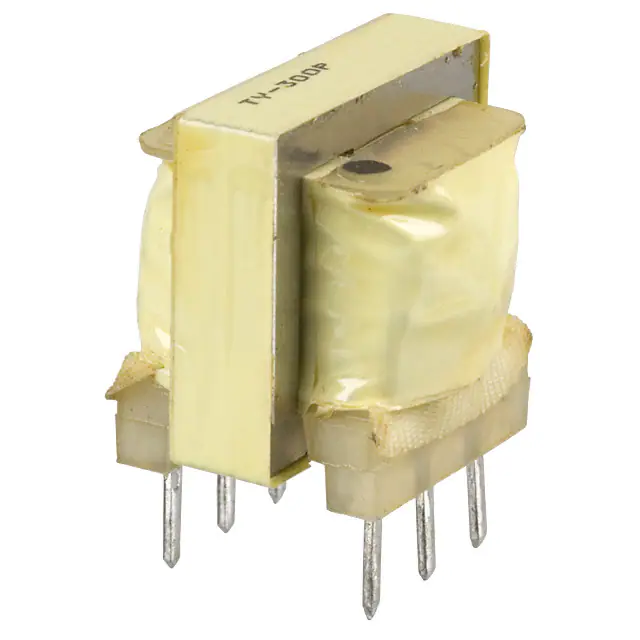

TY-300P TRANSF 600 OHM 0MA DC TEL HYBRID Triad Magnetics	304	-	立即询盘	规格书	Bulk	TY	Active	1:2.48	600	600/600	172Ohm	66Ohm, 66Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	-	1500VAC	0.8dB Typ	30dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.812 L x 0.700 W (20.62mm x 17.78mm)	0.740 (18.80mm)
MET-28-T AUDIO XFMR 1K/50 THRU HOLE Triad Magnetics	160	-	立即询盘	规格书	Bulk	MET	Active	4.47:1	1k	50	110Ohm	8Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)

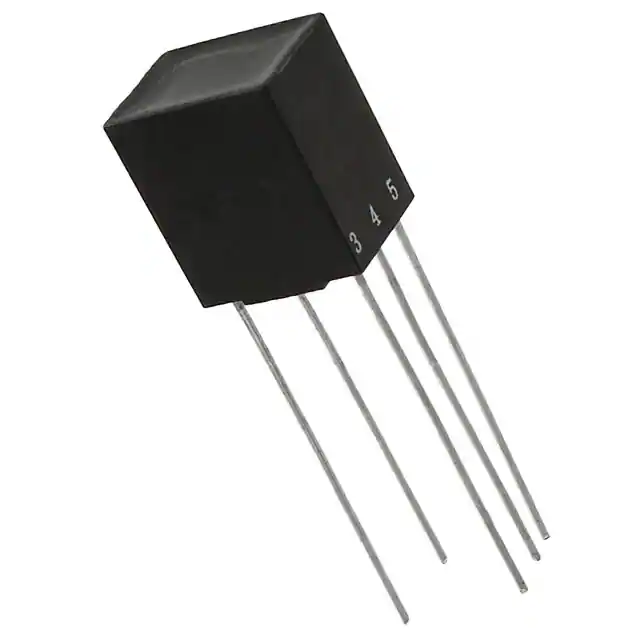

MET-60-T TRANSFORMER 135:135CT 10.0MADC Triad Magnetics	3,437	-	立即询盘	规格书	Bulk	MET	Active	1:1	135	135CT	10.5Ohm	10.8Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)
SP-42 TRANSER 150 CT/ 12 OHM AUDIO Triad Magnetics	3,864	-	立即询盘	规格书	Bulk	Red-Spec	Active	3.54:1	150CT	12	18Ohm	2.7Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)
SP-21 TRANSF 10K CT/ 2K CT AUDIO Triad Magnetics	438	-	立即询盘	规格书	Bulk	Red-Spec	Active	2.24:1	10kCT	2kCT	1.05kOhm	330Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)
SP-4 TRANSF 200K CT/1K CT AUDIO Triad Magnetics	2,605	-	立即询盘	规格书	Bulk	Red-Spec	Active	14.1:1	200kCT	1kCT	5.3kOhm	100Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	10mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)
SP-52 TRANSER 1.5K CT/ 600 OHM AUDIO Triad Magnetics	3,009	-	立即询盘	规格书	Bulk	Red-Spec	Active	1.58:1	1.5kCT	600	168Ohm	92Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)

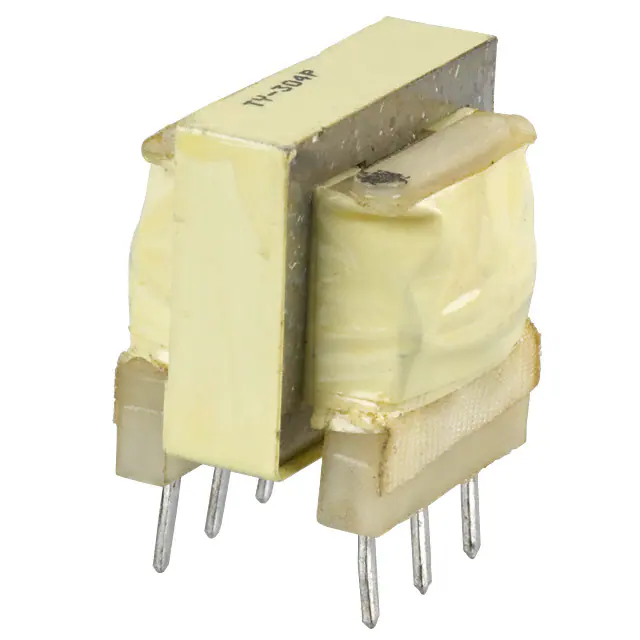

TY-304P TRANSF 600 CT OHM 0MA DC TEL Triad Magnetics	3,453	-	立即询盘	规格书	Bulk	TY	Active	1:1.05	600CT	600CT	42Ohm	60Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1dB Typ	26dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.790 L x 0.812 W (20.07mm x 20.62mm)	0.740 (18.80mm)
TY-401P TRANSF 600 OHM CTAP 90MA DC TE Triad Magnetics	3,201	-	立即询盘	规格书	Bulk	TY	Active	1:1.07	600CT	600CT	76.53Ohm	108Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1.75dB Typ	15dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.820 L x 0.715 W (20.83mm x 18.16mm)	0.750 (19.05mm)
MET-22-T TRANSFORMR 2.5KCT:2.5KCT 1.0MADC Triad Magnetics	136	-	立即询盘	规格书	Bulk	MET	Active	1:1	2.5kCT	2.5kCT	280Ohm	350Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	40mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)
MET-17-T AUDIO XFMR 10KCT/500CT THRU HOLE Triad Magnetics	3,996	-	立即询盘	规格书	Bulk	MET	Active	4.7:1	10kCT	500CT	1kOhm	80Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	40mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)
MET-42-T AUDIO XFMR 150/12 THRU HOLE Triad Magnetics	2,781	-	立即询盘	规格书	Bulk	MET	Active	3.54:1	150	12	20Ohm	2.5Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)
SP-5 TRANSF 50K CT/1K CT AUDIO Triad Magnetics	2,602	-	立即询盘	规格书	Bulk	Red-Spec	Active	7.1:1	50kCT	1kCT	3.8kOhm	75Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	25mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)
SP-29 TRANSF 10K CT/500 CT AUDIO Triad Magnetics	3,050	-	立即询盘	规格书	Bulk	Red-Spec	Active	4.47:1	10kCT	500CT	1.05kOhm	80Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)
SP-22 TRANSF 10K/2KCT 500 SPLIT SEC AU Triad Magnetics	3,807	-	立即询盘	规格书	Bulk	Red-Spec	Active	4.48:1:1	10k	2k, 500/500	1.05kOhm	146/168Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)
