音频变压器
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | TurnsRatio-Primary:Secondary | Impedance-Primary(Ohms) | Impedance-Secondary(Ohms) | DCResistance(DCR)-Primary | DCResistance(DCR)-Secondary | TransformerType | FrequencyRange | FrequencyResponse | Voltage-Isolation | InsertionLoss | ReturnLoss | PowerLevel | OperatingTemperature | ApprovalAgency | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP-13-BTRANSF 25K CT 20K CT/1K 800CT AU Triad Magnetics |
2,200 | - |
立即询盘 |
规格书 |
Bulk | Red-Spec | Active | 5:1 | 25kCT, 20kCT | 1kCT, 800CT | 1.7kOhm | 115Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 40mW | -40°C ~ 85°C | - | Through Hole | 0.410 L x 0.310 W (10.41mm x 7.87mm) | 0.465 (11.80mm) |
|

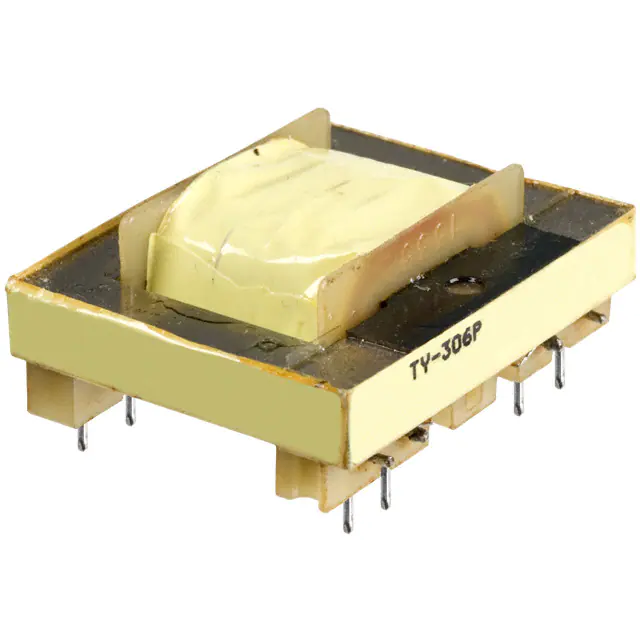

TY-306P-BTRANSF 600 SPLIT PRI .75MA DC TE Triad Magnetics |
2,578 | - |
立即询盘 |
规格书 |
Bulk | TY | Active | 1:2.21 | 600/600 | 600 | 31Ohm, 31Ohm | 108Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1.5dB Typ | 10dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 1.650 L x 1.375 W (41.91mm x 34.93mm) | 0.680 (17.27mm) |
|
TY-305P-BTRANSF 600 OHM 100MA DC TEL Triad Magnetics |
2,290 | - |
立即询盘 |
规格书 |
Bulk | TY | Active | 1:0.90 | 600 | 600 | 108Ohm | 61Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1.5dB Typ | 10dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 1.650 L x 1.375 W (41.91mm x 34.93mm) | 0.680 (17.27mm) |
|
SP-128INDUCTOR AUDIO 0.1 HENRY Triad Magnetics |
3,719 | - |
立即询盘 |
规格书 |
Bulk | Red-Spec | Active | - | - | - | 15Ohm | - | - | - | - | 1000VRMS @ 1 Second | - | - | - | -40°C ~ 85°C | - | Through Hole | 0.410 L x 0.310 W (10.41mm x 7.87mm) | 0.465 (11.80mm) |
|
|
TY-305PTRANSF 600 OHM 100MA DC TEL Triad Magnetics |
3,722 | - |
立即询盘 |
规格书 |
Bulk | TY | Active | 1:0.90 | 600 | 600 | 108Ohm | 61Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1.5dB Typ | 10dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 1.650 L x 1.375 W (41.91mm x 34.93mm) | 0.680 (17.27mm) |
|
SP-20TRANSF 10K CT/1.2K CT AUDIO Triad Magnetics |
3,453 | - |
立即询盘 |
规格书 |
Bulk | Red-Spec | Active | 2.88:1 | 10kCT | 1.2kCT | 1.05kOhm | 200Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -40°C ~ 85°C | - | Through Hole | 0.410 L x 0.310 W (10.41mm x 7.87mm) | 0.465 (11.80mm) |
|
SP-32AUDIO TRANSFORMER Triad Magnetics |
2,099 | - |
立即询盘 |
规格书 |
Bulk | Red-Spec | Active | 3.16:1 | 500 | 50 | 60Ohm | 8Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -40°C ~ 85°C | - | Through Hole | 0.410 L x 0.310 W (10.41mm x 7.87mm) | 0.465 (11.80mm) |
|
|
TY-306PTRANSF 600 SPLIT PRI .75MA DC TE Triad Magnetics |
2,134 | - |
立即询盘 |
规格书 |
Bulk | TY | Active | 1:1 | 600, 150/150 | 600 | 31Ohm, 31Ohm | 108Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1.5dB Typ | 10dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 1.650 L x 1.375 W (41.91mm x 34.93mm) | 0.680 (17.27mm) |
